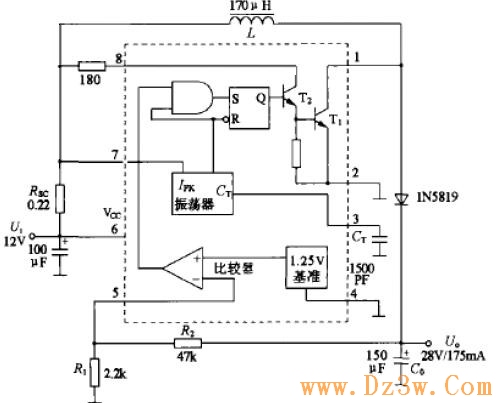

MC34063A升壓電路圖
(2011/11/2 20:40:00)
MC33063A參數
| Iout (Max) (A) | 0.75 | 0.75 |
| Iq (Typ) (mA) | 4 | |
| Switching Frequency (Max) (kHz) | 100 | 100 |
| Vin (Min) (V) | 3 | 3 |
| Vin (Max) (V) | 40 | 40 |
| Vout (Min) (V) | 1.25 | 1.55 |
| Vout (Max) (V) | 40 | 40 |
| Duty Cycle (Max) (%) | 90 | |
| Switch Current Limit (Typ) (A) | 1.5 | 1.5 |
| Operating Temperature Range (C) | -40 to 85 | 0 to 70 |
| Pin/Package | 8PDIP, 8SOIC, 8SON | 8PDIP, 8SOIC, 8SON |
| Approx. Price (US$) | 0.23 | 1ku | 0.21 | 1ku |
| Topology | Inverting Buck/Boost | Buck, Inverting Buck/Boost |
| Regulated Outputs (#) | 1 | 1 |
