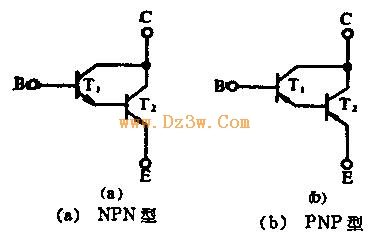

達林頓晶體管DT（Dar1ington Transistor）亦稱復合晶體管。它采用復合過接方式，將兩只或更多只晶體管的集電極連在一起，而將第一只晶體管的發射極直接耦合到第二只晶體管的基極，依次級連而成，最后引出E、B、C三個電極。
型號
| Pcm[W]
| Icm[A]
| Vceo[V]
| 封裝
| 類型
|
|
|
|
|
|
|
 2N6035
| 40
| 4
| 60
| TO-225
| PNP
|
.JPG) 2N6036
| 40
| 4
| 80
| TO-225
| PNP
|
| 2N6038
| 40
| 4
| 60
| TO-225
| NPN
|
 2N6039
| 40
| 4
| 80
| TO-225
| NPN
|
 2N6040
| 75
| 8
| 60
| TO-220
| PNP
|
| 2N6042
| 75
| 8
| 100
| TO-220
| PNP
|
| 2N6043
| 75
| 8
| 60
| TO-220
| PNP
|
| 2N6045
| -
|
| -
| TO-220
| -
|
2SB794
| 10
| 1.5
| 60
| TO-126
| PNP
|
2SB795
| 10
| 1.5
| 80
| TO-126
| PNP
|
2SC3075
| -
| -
| -
| TO-126
| -
|
2SC3294
| -
|
| -
| TO-202
| -
|
BD643
| 62.5
| 8
| 45
| TO-220
| NPN
|
BD644
| 62.5
| 8
| 45
| TO-220
| PNP
|
BD645
| 62.5
| 8
| 60
| TO-220
| NPN
|
BD646
| 62.5
| 8
| 60
| TO-220
| PNP
|
BD647
| 62.5
| 8
| 80
| TO-220
| NPN
|
BD648
| 62.5
| 8
| 80
| TO-220
| PNP
|
BD649
| 62.5
| 8
| 100
| TO-220
| NPN
|
BD650
| 62.5
| 8
| 100
| TO-220
| PNP
|
BD651
| 62.5
| 8
| 120
| TO-220
| NPN
|
BD652
| 62.5
| 8
| 120
| TO-220
| PNP
|
 BD677
| 40
| 4
| 60
| SOT-32
| NPN
|
| BD678
| 40
| 4
| 60
| SOT-32
| PNP
|
.JPG) BD679
| 40
| 4
| 80
| SOT-32
| NPN
|
| BD680
| 40
| 4
| 80
| SOT-32
| PNP
|
| BD681
| 40
| 4
| 100
| SOT-32
| NPN
|
| BD682
| 40
| 4
| 100
| SOT-32
| PNP
|
 BDW42
| 85
| 15
| 100
| TO-220
| NPN
|
| BDW46
| 85
| 15
| 80
| TO-220
| NPN
|
| BDW47
| 85
| 15
| 100
| TO-220
| NPN
|
BDW53
| 40
| 4
| 45
| TO-220
| NPN
|
BDW53A
| 40
| 4
| 60
| TO-220
| NPN
|
BDW53B
| 40
| 4
| 80
| TO-220
| NPN
|
BDW53C
| 40
| 4
| 100
| TO-220
| NPN
|
BDW53D
| 40
| 4
| 120
| TO-220
| NPN
|
BDW63A
| -
|
| -
| TO-220
| -
|
 BDX34
| 70
| 10
| 45
| TO-220
| PNP
|
 BDX34A
| 70
| 10
| 60
| TO-220
| PNP
|
| BDX34B
| 70
| 10
| 80
| TO-220
| PNP
|
 BDX34C
| 70
| 10
| 120
| TO-220
| PNP
|
BDX53
| 60
| 8
| 45
| TO-220
| NPN
|
BDX53A
| 60
| 8
| 60
| TO-220
| NPN
|
| BDX53B
| 60
| 8
| 80
| TO-220
| NPN
|
| BDX53C
| 60
| 8
| 100
| TO-220
| NPN
|
BDX54
| 60
| 8
| 45
| TO-220
| PNP
|
BDX54A
| 60
| 8
| 60
| TO-220
| PNP
|
| BDX54B
| 60
| 8
| 80
| TO-220
| PNP
|
| BDX54C
| 60
| 8
| 100
| TO-220
| PNP
|
BF64
| -
|
| --
| TO-220
|
|
BF65
| -
|
| --
| TO-220
|
|
BF64
| -
|
| --
| TO-220
|
|
 KSD5018
| 40
| 4
| 275
| TO-220
| NPN
|
R3672
| -
|
| -
| TO-220
| -
|
R3673
| -
|
| -
| TO-220
|
|
R3674
| -
| -
| --
| TO-220
| -
|
型號
|
| Pcm[W]
| Icm[A]
| Vceo[V]
| 封裝
| 類型
|
2SB1214
| -
|
| -
| TO-251
|
|
2SB1418
| -
|
| -
| MT-4
| -
|
2SC5388
| -
|
| -
| TO-220
| -
|
2SD1197
| -
|
| -
| TO-3P
| -
|
2SD1748
| -
|
| -
| TO-251
| -
|
2SD1817
| -
|
| -
| TO-251
|
|
2SD2138
| -
|
| -
| MT-4
|
|
2SD2242
| -
|
| -
| MT-4
| -
|
2SD2265
| -
|
| -
| TO-252
| -
|
2SD2502
| -
|
| -
| TO-251
|
|
2SD2530
| -
|
| -
| MT-4
|
|
BDW83c
| -
|
| -
| TO-3P
|
|
RBL43P
| -
|
| -
| TO-3P
|
|
BU932R
| -
|
| -
| TO-3P
|
|
 BU941
| -
|
| -
| TO-3P
|
|
 TIP100
| 80
| 8
| 60
| TO-220
| NPN
|
| TIP101
| 80
| 8
| 80
| TO-220
| NPN
|
 TIP102
| 80
| 8
| 60
| TO-220
| NPN
|
 TIP105
| 80
| 8
| 60
| TO-220
| PNP
|
| TIP106
| 80
| 8
| 80
| TO-220
| PNP
|
| TIP107
| 80
| 8
| 100
| TO-220
| PNP
|
| TIP110
| 50
| 2
| 60
| TO-220
| NPN
|
| TIP111
| 50
| 2
| 80
| TO-220
| NPN
|
| TIP112
| 50
| 2
| 100
| TO-220
| NPN
|
| TIP115
| 50
| 2
| 60
| TO-220
| PNP
|
| TIP116
| 50
| 2
| 80
| TO-220
| PNP
|
| TIP117
| 50
| 2
| 100
| TO-220
| PNP
|
| TIP120
| 65
| 5
| 60
| TO-220
| NPN
|
| TIP121
| 65
| 5
| 80
| TO-220
| NPN
|
| TIP122
| 65
| 5
| 100
| TO-220
| NPN
|
| TIP125
| 65
| 5
| 60
| TO-220
| PNP
|
| TIP126
| 65
| 5
| 80
| TO-220
| PNP
|
| TIP127
| 65
| 5
| 100
| TO-220
| PNP
|
| TIP132
| 70
| 8
| 100
| TO-220
| NPN
|
TIP150
| 80
| 7
| 300
| TO-220
| NPN
|
TIP152
| 80
| 7
| 400
| TO-220
| NPN
|
