【圖】GPIB接口定義，GPIB接口封裝及尺寸圖
(2023/4/16 0:02:00)

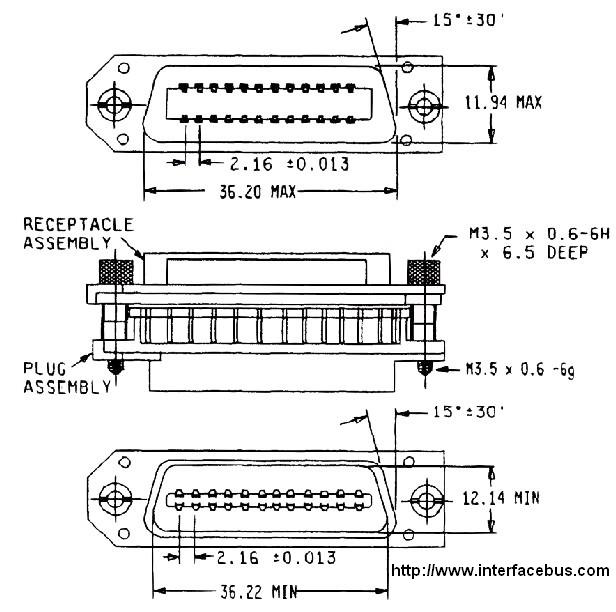

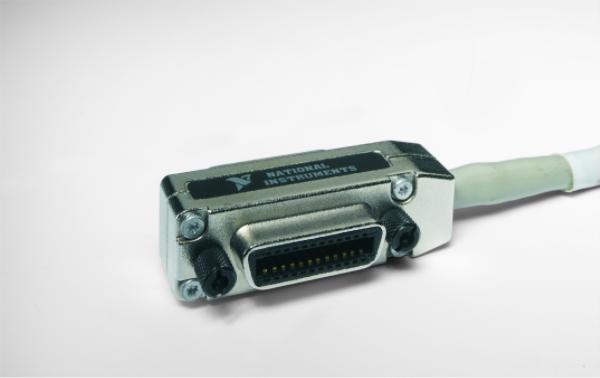

GPIB接口定義，GPIB接口封裝及尺寸圖
GPIB接口定義，GPIB接口封裝及尺寸圖
GPIB接口定義，GPIB接口封裝及尺寸圖
Pin #
| Signal Names
| Signal Description
| Pin #
| Signal Names
| Signal Description
|
1
| DIO1
| Data Input/Output Bit 1
| 13
| DIO5
| Data Input/Output Bit 5
|
2
| DIO2
| Data Input/Output Bit 2
| 14
| DIO6
| Data Input/Output Bit 6
|
3
| DIO3
| Data Input/Output Bit 3
| 15
| DIO7
| Data Input/Output Bit 7
|
4
| DIO4
| Data Input/Output Bit 4
| 16
| DIO8
| Data Input/Output Bit 8
|
5
| EIO
| End-Or-Identify
| 17
| REN
| Remote Enable
|
6
| DAV
| Data Valid
| 18
| Shield
| Ground (DAV)
|
7
| NRFD
| Not Ready For Data
| 19
| Shield
| Ground (NRFD)
|
8
| NDAC
| Not Data Accepted
| 20
| Shield
| Ground (NDAC)
|
9
| IFC
| Interface Clear
| 21
| Shield
| Ground (IFC)
|
10
| SRQ
| Service Request
| 22
| Shield
| Ground (SRQ)
|
11
| ATN
| Attention
| 23
| Shield
| Ground (ATN)
|
12
| Shield
| Chassis Ground
| 24
| Single GND
| Single Ground
|
