SiC414是Vishay公司的集成了5V/200mA LDO的6A降壓電源穩壓器,開關頻率高達1MHz,全部采用陶瓷電容.連續輸出電流達6A,效率大于95%,內部軟起動和軟關斷,主要用在筆記本電腦,臺式電腦和服務器,數字HDTV和消費類電子,網絡和通信設備,打印機,DSL和STB,嵌入式應用和點負載電源.本文介紹了SiC414主要特性, 功能方框圖, 典型應用電路圖和SiC414評估板電路圖以及材料清單(BOM).

The Vishay Siliconix SiC414 is an advanced stand-alone synchronous buck regulator featuring integrated power MOSFETs, bootstrap diode, and an internal 5 V LDO in a space-saving MLPQ 4 x 4 - 28 pin package.



The SiC414 is capable of operating with all ceramic solutions and switching frequencies up to 1 MHz. The programmable frequency, synchronous operation and selectable power-save allow operation at high efficiency across the full range of load current. The internal LDO may be used to supply 5 V for the gate drive circuits or it may be bypassed with an external 5 V for optimum efficiency and used to drive external n-channel MOSFETs or other loads. Additional features include cycle-by-cycle current limit, voltage softstart, under-voltage protection, programmable over-current protection, soft shutdown and selectable power-save. The Vishay Siliconix SiC414 also provides an enable input and a power good output.



SiC414主要特性:



• High efficiency > 95 %



• 6 A continuous output current capability



• Integrated bootstrap switch



• Integrated 5 V/200 mA LDO with bypass logic



• Temperature compensated current limit



• Pseudo fixed-frequency adaptive on-time control



• All ceramic solution enabled



• Programmable input UVLO threshold



• Independent enable pin for switcher and LDO



• Selectable ultra-sonic power-save mode



• Internal soft-start and soft-shutdown



• 1 % internal reference voltage



• Power good output and over voltage protection



• Halogen-free according to IEC 61249-2-21 definition



• Compliant to RoHS directive 2002/95/EC



SiC414應用:



• Notebook, desktop and server computers



• Digital HDTV and digital consumer applications



• Networking and telecommunication equipment



• Printers, DSL and STB applications



• Embedded applications



• Point of load power supplies

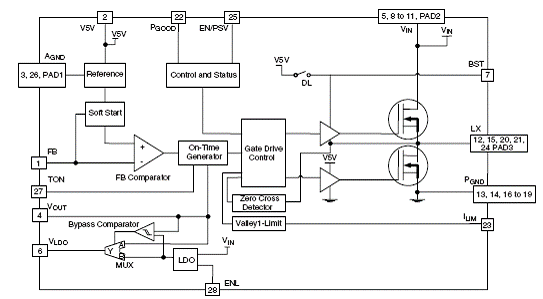

圖1.SiC414功能方框圖

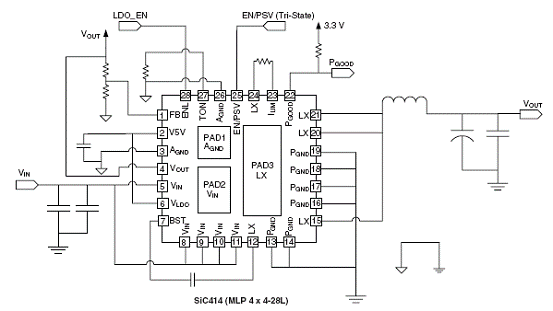

圖2.SiC414典型應用電路圖

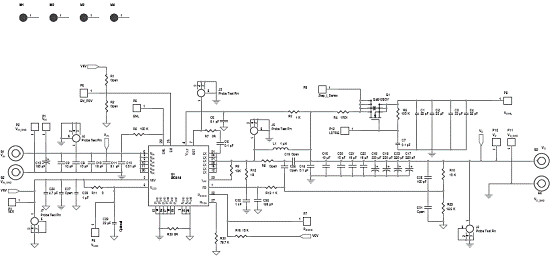

圖3.SiC414評估板電路圖

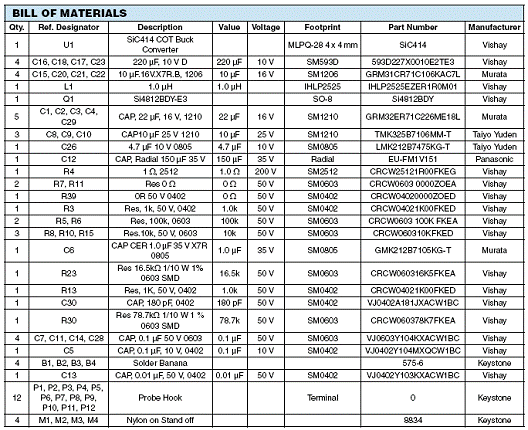

SiC414評估板材料清單(BOM):

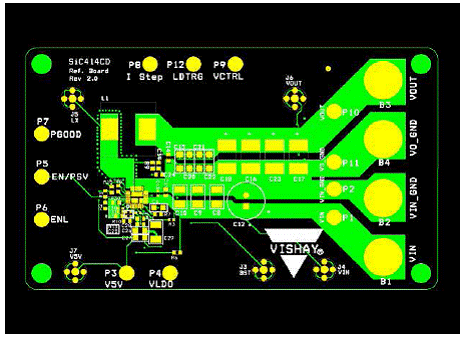

圖4.SiC414評估板PCB布局圖(頂層)
